HPA1K5PS60

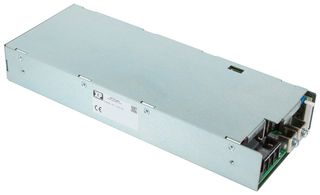

HPA1K5PS60 is a HPA1K5 series AC-DC power supply. It offers users both output voltage and output current programming, via voltage, I²C PMBus, RS485 and CAN open in a very high efficiency, high power density 1.5KW chassis mount package. It also features active current sharing, remote on/off, remote sense and a power OK signal. Application includes healthcare, industrial electronics, semiconductor manufacturing, technology. Safety approvals are UL62368-1, CSA 22.2 No.62368-1, UL60950-1 (UL, information technology), ANSI/AAMI ES60601-1:2005 & CSA C22.2, No.60601-1:08 (medical), EN62368-1 (UL, information technology), EN60601-1/2006 (medical).

• 180 to 264VAC input voltage range, 60VDC output voltage
• 1500W maximum power supply, 0.0A to 25.00A output current range
• 92% efficiency (measured with 230VAC input and full load), 60 to 70KHz switching frequency range
• Programmable output voltage, programmable output current
• High efficiency, ITE and medical approvals, 4000VAC input to output isolation (2 x MOPP)
• Parallel operation, analogue and digital interfaces
• Multiple digital protocols - PMBus, CANopen, MODBUS and SCPI
• Fully featured signals and controls, graphical user interface (GUI)
• 3 year warranty
• Dimension is 279.4 x 106.6 x 41.6mm, operating temperature range from -20 to +70°C
