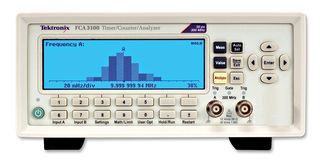

FCA3100

FCA3100 is a 300MHz / 50ps timer/counter/analyser. The timer/counter/analyser pack many different functions into one feature-rich instrument. With industry-leading frequency and time resolution, the FCA Series comes standard with deep internal memory and a fast data transfer rate of 250k Samples/s to internal memory. In addition, the multi-parameter display shows auxiliary measurements alongside your main measurement to provide you with the results you need at a glance. With the industry's most comprehensive analysis modes, including measurement statistics, histograms, and trend plots, you have the tools you need to quickly and accurately analyse your signal.

• 12 digit/s frequency resolution
• Front panel save and recall buttons
• 12 automated measurements
• Totalize measurement, trend plot mode, measurement statistics mode
• Multi-parameter display
• Histogram mode, Allan deviation, zero dead-time frequency/period measurements
• 250k sample/s data transfer rate to internal memory (Up to 3.75M samples stored)
• Up to 650 individually triggered measurements/s
• USB device and GPIB ports on rear panel for quick PC connectivity
• Dimension is 90mm x 210mm x 395mm

Contenuti

Timer/counter, Line cord, Calibration certificate, Quick start user manual, CD-ROM with user manual programmer's guide, Technical specifications, Trial version of TimeView™ software, CD-ROM with National Instruments LabVIEW SignalExpress™ Tektronix edition, Limited edition software.

Note

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
