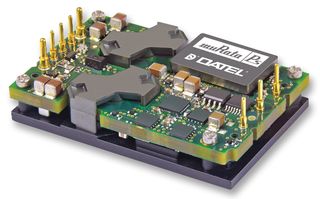

UQQ-12/8-Q12PB-C

The UQQ-12/8-Q12PB-C is a 1-output board-mount isolated DC to DC Converter with fully isolated output voltage and wide input voltage range. The UQQ series 96W low profile DC/DC converter employs an interleaved, synchronous-rectifier topology that exploits 100% of their duty cycle. They simultaneously achieve ultra-high efficiency, tight line/load regulation, low noise and quick step response. A state of the art, single-board, open-frame design with reduced component count, high efficiency, low-on-resistance FET's and planar magnetics embedded in heavy-copper pc boards all contribute to impressive thermal derating. The standard footprint carries on/off control (positive or negative polarity), output trim (+10/-20%) and output sense functions.

• Interleaved synchronous-rectifier topology
• Outstanding thermal performance
• On/off control, trim and sense functions
• Fully isolated, up to 2250VDC (48Vin)
• Output overvoltage protection
• Fully I/O protected, thermal shutdown
• Input under-voltage shutdown
• Current limiting
• Short-circuit protection
