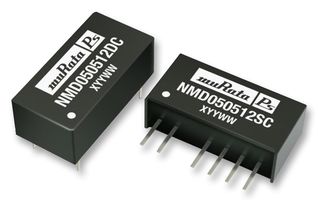

NMD050505SC

The NMD050505SC is a 2-output 1W board-mount isolated DC to DC Converter ideally suited to applications where a potential difference exists between loads, e.g. motor control circuits. The twin outputs offer cost and space savings by consolidating two DC/DC converters into one. All of the rated power may be drawn from a single output provided the total load does not exceed 1 watt.

• Input/output isolation 1kVDC
• 1kVDC Output/output isolation
• Power sharing on outputs
• Efficiency up to 80%
• 0.85W/cm³ Power density
• Footprint from 1.17cm²
• No heatsink required
• Internal SMD construction
• Fully encapsulated with toroidal magnetics
• No external components required
• MTTF up to 1.6 million hours
• PCB mounting

Avvertenze

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
