P6KE7.5A

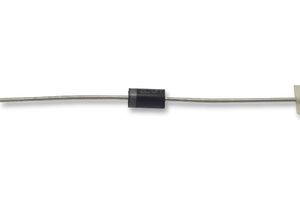

The P6KE7.5A from Multicomp Pro is a P6KE series unidirectional transient voltage suppressor in DO-15 package. It has low leakage current, excellent clamping capability and low zener impedance. The device exceeds environmental standards of MIL-STD-19500. The leads are pure tin plated and solderable per MIL-STD-202, method 208.

• UL94-V0 rated moulded plastic case
• Minimum peak power dissipation of 600W at TA = 25°C, TP = 1ms and nominal voltage of 7.5V
• Peak forward surge current of 100A (8.3ms single half sine wave super imposed on rated load
• Steady state power dissipation (PM(AV)) of 5W at TL = 75°C
• Operating temperature range from -55°C to +150°C
• Reverse stand-off voltage (VR) of 6.4V and maximum reverse leakage current (IR) of 500µA
• Breakdown voltage (VBR) of 7.13V (minimum), 7.88V (maximum) and test current ( IT) of 10mA
• 11.3V maximum clamping voltage (Vc) and 53A maximum peak pulse (Ipp) current
• Less than 1ps fast response time from 0V to VBR and 0.061mV/°C maximum voltage temperature variation
• Maximum instantaneous forward voltage of 3.5V at 50A
