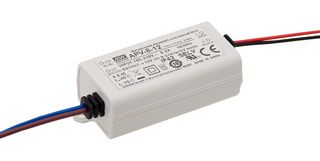

APV-8-24

APV-8-24 is an APV-8 series 8W single output constant voltage mode single output LED switching power supply. This has exploiting class II design (without FG pin) and adopting the 94V to 0 flame retardant plastic enclose, it is ideally fits the entry-level LED applications. It is suitable for LED related fixture or appliance application. It includes short circuit, overload, over voltage protection. It also has no load power consumption <lt/>0.5W. Approved by UL8750, CSA C22.2 No.250.0-08, BIS IS15885, BIS IS15885, EAC TP TC 004, BS EN/EN 62368-1.

• Input voltage range from 90 to 264VAC, 127 to 370VDC, output DC voltage is 24V
• Output rated current is 0.34A, output rated power is 8.16W, efficiency is 81%
• Constant voltage mode power supply, universal AC input/full range
• Fully isolated plastic case, IP24 design
• Small and compact size, cooling by free air convection
• 100% full load burn-in test
• Low cost, high reliability
• 2 years warranty
• Working temperature range from -30 to +70°C
• Dimension is (L x W x H) 60 x 30 x 23.5mm
