Avvisami non appena disponibile
Quantità | |
---|---|
1+ | € 44,220 |
5+ | € 43,340 |
10+ | € 42,450 |
Informazioni sui prodotti
Panoramica del prodotto

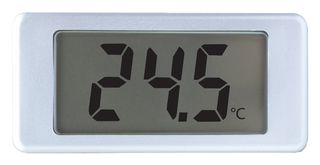

The EMT 1900 is a LCD Digital Panel Meter with 4 measurement ranges. The module can measure ambient temperature via a built-in sensor and outside temperature via an external sensor (not supplied). It uses NTC temperature sensors to ensure high accuracy over a wide temperature range. The module is fitted to the panel by locating its screw threaded stud through the hole, fitting the washer and tightening the nut provided. A rubber seal is included, providing splash-proof protection for the unit when fitted to the meter during installation.
- Single hole mounting thermometer
- 12.5mm Digit height
- Compatible with 10k NTC sensors
- Splash-proof protection
- -10 to 50°C Operating temperature range
Specifiche tecniche
3
da -10°C a +50°C, da +14°F a +122°F, da -20°C a +122°C, da -4°F a +428°F
21mm
4V
-10°C
-
temperatura
12.5mm
44mm
28VDC
50°C
No SVHC (07-Nov-2024)
Documenti tecnici (1)
Legislazione e ambiente
Paese in cui si è svolta l'ultima parte più significativa del processo produttivoPaese d'origine:Great Britain
Paese in cui si è svolta l'ultima parte più significativa del processo produttivo
RoHS
RoHS
Certificato di conformità del prodotto
