WJ-200/10M (IEC)

The WJ-200/10M (IEC) is a high-quality Type J thermocouple extension wire designed for general-purpose temperature sensing and signal transmission. Manufactured to IEC standards, this cable features a flat pair construction with PVC insulation and an overall PVC sheath, offering excellent flexibility and waterproofing for industrial and laboratory environments.Each conductor consists of 7 strands of 0.2mm wire, providing a total conductor area of 0.219mm², and is colour-coded with black (+) and white (-) cores. The cable is supplied in a 10 metre length (approximately 32.8 feet), making it suitable for extended runs between sensors and instrumentation. This wire is RoHS compliant, ensuring it meets environmental and safety standards, and is ideal for use with Type J thermocouples in applications requiring robust, flexible, and chemically resistant cabling

• CPR: ancora non qualificato
• Thermocouple type J
• 7/0.2mm stranded conductors
• Black jacket, +black/-white cores, 10m reel length

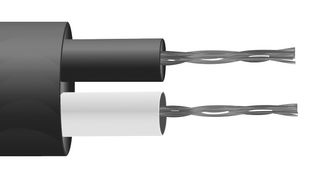

• PVC insulated flat pair construction
• Conductors laid flat PVC insulated with overall PVC sheath
• All round general purpose cable, both waterproof and very flexible
• Tolerance class 2
• Insulation rating -10°C to 105°C
• Colour code (cores and jacket) to IEC-584-3
