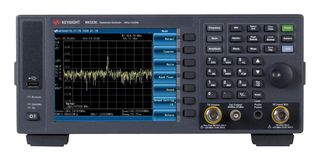

N9323C

N9323C is a basic spectrum analyser (BSA). It offers proven test efficiency, usability, and flexibility to adapt to new requirements. It is ideal for general-purpose spectrum analysis and low-cost manufacturing applications, helping you to achieve higher productivity on a smaller budget – whether you are tuning an RF circuit of an IoT module, hunting for noise for a system, fighting for higher throughput, or teaching students in a classroom. This easy-to-afford BSA spectrum analyser put together just enough performance, and superior reliability, to assist you in addressing common RF-microwave test and measurement challenges easily and faster. It complies with European low voltage directive 2014/35/EU, IEC/EN 61010-1 3.1 Edition, Canada: CAN/CSA-C22.2 No 61010-1-12, USA: UL 61010-1 3.1 Edition.

• Basic spectrum analyser (BSA) outperform expectations in essential RF applications
• Comes equipped with tracking generator and built-in VSWR bridge for transmission and reflection test
• Identifies interfering signals from unexpected transmissions w/ powerful spectrum monitoring feature
• Supports AM/FM, ASK/FSK demodulation analysis suites for IOT transmitter characterization
• 1MHz to 13.6GHz frequency range
• 10Hz to 3MHz resolution bandwidth
• Amplitude accuracy is ±0.7dB, +11dBm TOI
• Phase noise is -92dBc/Hz, ≤ 25W power consumption
• Operating temperature range from +5 to +45°C
• Dimension is 132.5mm x 320mm x 400mm (H×W×L)
