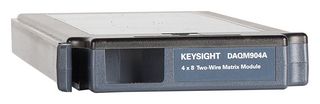

DAQM904A

DAQM904A is a 4 x 8 two-wire matrix module for DAQ970A and DAQ973A data acquisition system. This module gives you the most flexible connection path between your device under test and your test equipment, allowing different instruments to be connected to multiple points on your DUT at the same time. Rows or columns may be connected between multiple modules to build 8 x 8, 4 x 16 or larger matrices, with up to 96 cross points in a single frame.

• 4 x 8 matrix switch
• 32 two-wire cross points
• 300V, 1A switching

Contenuti

DAQM904A 4 x 8 matrix switch module, Functional test certificate.

Note

In addition, we have calibration services for this product (Europe Only). You will need to order the multiplexer with this item if calibration required. Visit our calibration service page to see details of what options are available.
