SMI18-9-V-P5

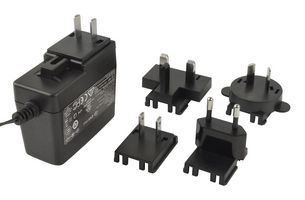

SMI18-9-V-P5 is a SMI18 series wall plug-in AC-DC power supply with interchangeable AC blades. The series is designed to meet the latest US DoE Level VI efficiency standards in addition to the proposed and more stringent EU CoC Tier 2 requirements. Designed for global use, CUI's SMI adapters include plug options for North America, Europe, the United Kingdom, Australia and China. This high-efficiency power supply adapter is a continuation of CUI's initiative to provide customers with global solutions utilizing the latest in green power technology.

• Input voltage range from 90 to 264VAC and input frequency range from 47 to 63Hz
• 9VDC nom output voltage and2.2A max output current
• 19.8W max output power and 100mVp-p max ripple and noise
• 86.5% average efficiency level and 0.07W typ no load power consumption
• North America, Europe, United Kingdom, Australia, and China blade included ( interchangeable)
• DoE Level VI, CoC Tier 2 efficiency
• No load power consumption < 0.075W
• Standard code, centre positive polarity and straight DC plug type
• Over voltage, over current, and short circuit protections
• UL/cUL, RCM, CCC, and PSE safety approvals and certified to 60950-1 and 62368-1 standards
