Informazioni sui prodotti
Panoramica del prodotto
The PRM-5-EUR KIT from Beha-Amprobe is a phase rotation tester. It is a simple and reliable tester to check for proper phase sequence in 3-phase cables and receptacles. This phase rotation tester is durably constructed with a rubber out casing and CAT IV 600V rated making this tool essential for phase rotation testing in commercial and industrial environment on electrical systems up to 700V. It provides phase sequence test to validate correct connections and identifies faulty 3-phase wiring with de-energized phases or incorrectly wired receptacles. The meter complies with CE IEC/EN 61557-1/-7IEC/EN 61010-1 3rd edition to CAT IV 600 V, pollution degree 2, IEC/EN 61010-2-030, IEC/EN 61010-031 for test leads EMC IEC/EN 61326-1.
- 3-phase wire sequence indication, error display
- Drop-proof to 1 meter
- Voltage range (frequency) from 100V to 700V (16Hz to 400Hz)
- Nominal test current of less than 3.5mA
- Operating altitude up to 2000m
- Operating temperature range from 0°C to 40°C
- Dimension is 65mm x 137mm x 33mm (W x D x H) and weight is 253g
Contenuti

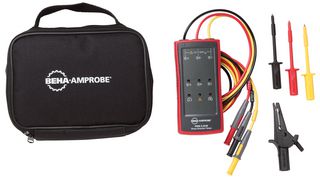

PRM-5-EUR phase rotation tester, Non-detachable test leads (black, red, yellow), 3 test probes (black, red, yellow), Alligator clip (black), Users manual, Carrying case.
Avvertenze
Non toccare tensioni maggiori di 30VAC RMS, picchi di 42VAC o 60VDC. Possono comportare pericoli di shock elettrico.
Note
Non utilizzare PRM-5-EUR con nessuna delle parti rimosse. Servizi di calibrazione disponibili per questo prodotto. Scegli un servizio di certificazione standard o una calibrazione accreditata UKAS riconosciuta a livello internazionale. Visita la nostra pagina di calibrazione per maggiori dettagli.
Specifiche tecniche
da 16Hz a 400Hz
0°C
137mm
33mm
-
da 100V a 700V
40°C
65mm
253g
No SVHC (15-Jun-2015)
Documenti tecnici (2)
Legislazione e ambiente
Paese in cui si è svolta l'ultima parte più significativa del processo produttivoPaese d'origine:China
Paese in cui si è svolta l'ultima parte più significativa del processo produttivo
RoHS
RoHS
Certificato di conformità del prodotto
