ASX00021

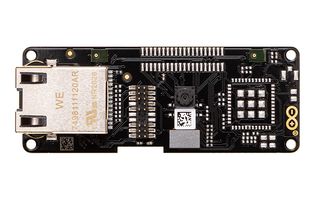

ASX00021 is a Portenta Vision Shield- Ethernet that brings industry-rated features to your Arduino Portenta. This hardware add-on will let you run embedded computer vision applications, connect wirelessly or via Ethernet to the Arduino Cloud or your own infrastructure, and activate your system upon the detection of sound events. The shield comes with a 320x320 pixels camera sensor, a 100 Mbps Ethernet connector, Two on-board microphones for directional sound detection, JTAG connector, SD-card connector. The Vision Shield Ethernet has been designed to work with the Arduino Portenta H7. The Portenta boards feature multicore 32-bit ARM® Cortex™ processors running at hundreds of megahertz, with megabytes of program memory and RAM.

• Modulo telecamera Himax HM-01B0
• Risoluzione pixel attivi 320 x 320 con supporto per QVGA
• Tecnologia di pixel BrightSense™ di 3.6μ ad alta sensibilità
• 2 microfoni MP34DT05
• Dimensioni: 66mm x 25mm
