Product Information
ManufacturerMOLEX
Manufacturer Part No202410-0002
Order Code2990511
Product Range202410
Technical Datasheet
USB Connector TypeUSB Type C
USB StandardUSB 3.1
No. of Positions24Ways
Connector MountingSurface Mount
Product Range202410
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCtris(2-methoxyethoxy)vinylsilane (07-Nov-2024)
Product Overview

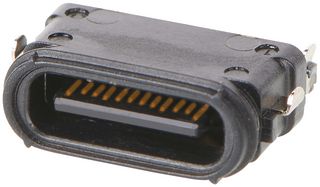

202410-0002 is a 202410 series Universal Serial Bus (USB) fully shielded I/O receptacle.
- 30VAC maximum voltage
- 6A maximum current per contact
- Single port, dual row, 24 circuits (loaded) and 24 circuits (maximum)
- Durability of 10000 mating cycles max
- Right angle orientation, surface mount termination interface style and Mid-mount mounting style
- Copper alloy metal, gold plating termination and gold plating mating
- High-temperature thermoplastic resin
- Polarized to PCB, panel mount and PCB locator
- IPx8 waterproof / dustproof
- Operating temperature range from -40 to +85°C
Technical Specifications
USB Connector Type
USB Type C
Gender
Receptacle
Connector Mounting
Surface Mount
Contact Material
Copper Alloy
SVHC
tris(2-methoxyethoxy)vinylsilane (07-Nov-2024)
USB Standard
USB 3.1
No. of Positions
24Ways
Product Range
202410
Contact Plating
Gold Plated Contacts
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:tris(2-methoxyethoxy)vinylsilane (07-Nov-2024)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.0005
