7UL1G08FS,RF(T
Logic IC, AND Gate, Single, 2 Inputs, 5 Pins, SOT-953

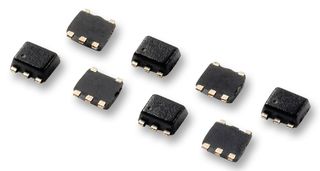

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTOSHIBA
Manufacturer Part No7UL1G08FS,RF(T
Order Code4380950RL
Also Known As7UL1G08FS, 7UL1G08FS,RF
Technical Datasheet
10,000 In Stock
Need more?
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 100+ | €0.0767 |
| 500+ | €0.0664 |
| 1000+ | €0.0632 |
| 5000+ | €0.0605 |
| 10000+ | €0.0544 |
Price for:Each (Supplied on Cut Tape)
Minimum: 100
Multiple: 5
€12.67 (ex VAT)
A €5.00 re-reeling charge will be added for this product
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerTOSHIBA
Manufacturer Part No7UL1G08FS,RF(T
Order Code4380950RL
Also Known As7UL1G08FS, 7UL1G08FS,RF
Technical Datasheet
Logic FunctionAND Gate
No. of ElementsSingle
No. of Inputs2Inputs
No. of Pins5Pins
IC Case / Package0
Logic Case StyleSOT-953
Product Range-
Logic IC Family7UL1
Supply Voltage Min900mV
Supply Voltage Max3.6V
Schmitt Trigger Input-
Output Current8mA
Operating Temperature Min-40°C
Operating Temperature Max125°C
SVHCTo Be Advised
Product Overview
7UL1G08FS,RF(T is a silicon monolithic CMOS digital integrated circuit.
- 2-input AND gate, VCC operating voltage range from 0.9 to 3.6V
- 3.6V tolerant inputs, 3.6V power down protection output
- Output current is ±8.0mA typical at (VCC = 3.0 to 3.6V)
- Input leakage current is ±0.1µA maximum at (VIN = 0 to 3.6V, Ta = 25°C)
- Quiescent supply current is 1µA maximum at (VIN = VCC or GND, Ta = 25°C)
- Propagation delay time is 20.7ns typical at (RL = 1Mohm, 0.9VCC, CL = 10pF, Ta = 25°C)
- Input capacitance is 3pF typical at (Ta = 25°C, input: tr = tf = 3ns)
- Wide operating temperature range from -40°C to 125°C
