2334530-4
Rectangular Power Connector, 5LP+24S+2P, 31 Contacts, MULTI-BEAM PLUS Series, PCB Mount

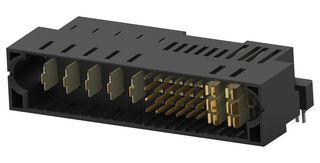

Image is for illustrative purposes only. Please refer to product description.
ManufacturerTE CONNECTIVITY
Manufacturer Part No2334530-4
Order Code3289602
Product RangeMULTI-BEAM PLUS Series
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 11 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €17.320 |
| 10+ | €15.750 |
| 25+ | €15.730 |
| 100+ | €14.990 |
| 250+ | €14.370 |
| 500+ | €13.850 |
Price for:Each
Minimum: 1
Multiple: 1
€17.32 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerTE CONNECTIVITY
Manufacturer Part No2334530-4
Order Code3289602
Product RangeMULTI-BEAM PLUS Series
Technical Datasheet
No. of Contacts31Contacts
Product RangeMULTI-BEAM PLUS Series
Connector MountingPCB Mount
Contact Termination TypeThrough Hole Right Angle
Pitch Spacing-
GenderHeader
Contact GenderPin
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Connector Shell Size-
No. of Rows6Rows
SVHCNo SVHC (21-Jan-2025)
Product Overview
2334530-4 is a rectangular power connector.
- Fully shrouded header, horizontal PCB mount orientation
- 24 number of signal positions, 7 number of power positions
- Operating voltage is 60VAC/VDC
- Gold contact mating area plating material
- 100A maximum contact current rating
- Black LCP GF30 (liquid crystal polymer) housing
- Operating temperature range from -40 to 125°C
- UL flammability rating is UL 94V-0
Technical Specifications
No. of Contacts
31Contacts
Connector Mounting
PCB Mount
Pitch Spacing
-
Contact Gender
Pin
Contact Plating
Gold Plated Contacts
No. of Rows
6Rows
Product Range
MULTI-BEAM PLUS Series
Contact Termination Type
Through Hole Right Angle
Gender
Header
Contact Material
Copper Alloy
Connector Shell Size
-
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:China
Country in which last significant manufacturing process was carried out
Tariff No:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000001
