DBNYD1-10

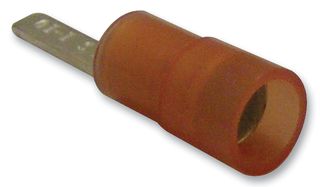

Blade Terminal, DBNYD, 22AWG to 16AWG, 1.5 mm², Red, Nylon (Polyamide), 2.3mm x 0.75mm
Image is for illustrative purposes only. Please refer to product description.
ManufacturerMULTICOMP PRO
Manufacturer Part NoDBNYD1-10
Order Code1687737
Product RangeDBNYD
Technical Datasheet
51 In Stock
11,000 more incoming. You can reserve stock now
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | €17.650 |
| 5+ | €14.710 |
| 10+ | €12.180 |
Price for:Pack of 100
Minimum: 1
Multiple: 1
€17.65 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerMULTICOMP PRO
Manufacturer Part NoDBNYD1-10
Order Code1687737
Product RangeDBNYD
Technical Datasheet
Product RangeDBNYD
Wire Size (AWG)22AWG to 16AWG
Wire Size AWG Min22AWG
Wire Size AWG Max16AWG
Conductor Area CSA1.5mm²
Insulator ColourRed
Insulator MaterialNylon (Polyamide)
Tab Size - Metric2.3mm x 0.75mm
Tab Size - Imperial0.091" x 0.03"
SVHCNo SVHC (21-Jan-2025)
Product Overview
The DBNYD1-10 from Multicomp Pro is a blade crimp terminal with red colour nylon insulation. This blade crimp terminal tab size is 2.3mm x 10mm (W x L) with thickness of 0.75mm.
- Wire size range from 22AWG to 16AWG (0.5mm² to 1.5mm²)
- Maximum voltage rating of 600V at 105°C
- Terminal material is copper
- Double crimp with copper sleeve on barrel
- Tin plated terminal surface
- Overall length of 21mm
- Maximum electric current of 18A
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Contents
Pack of 100 blade crimp terminals.
Technical Specifications
Product Range
DBNYD
Wire Size AWG Min
22AWG
Conductor Area CSA
1.5mm²
Insulator Material
Nylon (Polyamide)
Tab Size - Imperial
0.091" x 0.03"
Wire Size (AWG)
22AWG to 16AWG
Wire Size AWG Max
16AWG
Insulator Colour
Red
Tab Size - Metric
2.3mm x 0.75mm
SVHC
No SVHC (21-Jan-2025)
Technical Docs (1)
Associated Products
4 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85369010
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.075
