503182-1852

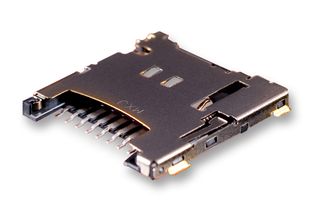

Memory Card Connector, MicroSD, Push-Push, 8 Contacts, Copper Alloy, Gold Plated Contacts, 503182
Product Information
ManufacturerMOLEX
Manufacturer Part No503182-1852
Order Code2612461
Product Range503182
Also Known AsGTIN UPC EAN: 887191053714
Technical Datasheet
Memory / Card TypeMicroSD
Insert & Eject MechanismPush-Push
Connector TypeMicro SD
No. of Contacts8Contacts
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
Product Range503182
SVHCNo SVHC (21-Jan-2025)
Product Overview
The 503182-1852 from Molex is a 1.10mm pitch shielded microSD memory card connector with detection switch in push-push style. It is used with microSD card.
- 90° entry angle
- 8 circuits (loaded)
- Maximum durability of 10000 mating cycles
- Gold, tin termination plating
- Surface mount termination interface style
- Operating temperature range from -25°C to +85°C
- Maximum 0.5A current per contact, maximum 10VAC (RMS)/DC voltage
- Anti-card fly-out
- Normal PCB mounting side with PCB retention
- 1.45mm height
Technical Specifications
Memory / Card Type
MicroSD
Connector Type
Micro SD
Contact Material
Copper Alloy
Product Range
503182
Insert & Eject Mechanism
Push-Push
No. of Contacts
8Contacts
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (21-Jan-2025)
Associated Products
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Vietnam
Country in which last significant manufacturing process was carried out
Tariff No:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.00036
