MC122032B6W-SPR-V2
Graphic LCD, 122 x 32 Pixels, 5V, Parallel, No Font, Reflective

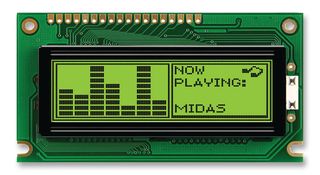

Image is for illustrative purposes only. Please refer to product description.
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC122032B6W-SPR-V2
Order Code2675688
Technical Datasheet
Available to Order
Manufacturer Standard Lead Time: 14 week(s)
Notify me when back in stock
| Quantity | Price (ex VAT) |
|---|---|
| 5+ | €9.920 |
Price for:Each
Minimum: 5
Multiple: 5
€49.60 (ex VAT)
Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
Product Information
ManufacturerMIDAS DISPLAYS
Manufacturer Part NoMC122032B6W-SPR-V2
Order Code2675688
Technical Datasheet
Resolution122 x 32 Pixels
Display Appearance-
Logic Voltage5V
Interface TypeParallel
Font SetNo Font
Display ModeReflective
LCD Display TypeSTN
Module Size84mm x 44mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourNo Backlight
Product Range-
SVHCNo SVHC (27-Jun-2024)
Product Overview
The MC122032B6W-SPR-V2 from Midas is a chip on board graphic LCD module. The overall size of module is 80mm x 44mm x 10mm (W x H x D) with 122 x 32 characters.
- Typical input voltage is 5V
- Supply current is 1.5mA at Vdd = 5V
- Yellow/green reflective STN
- 6 "o" clock viewing direction
- SBN1661G_M02 controller
- Operating temperature range from -20°C to 70°C
- Onboard AVANT SBN1661G Controller with standard parallel interface
- 5V logic supply, 1/32 display duty and 1/7 driving bias
- No backlight
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 20-way through-hole SIL connection (top, left) with 2.54mm pitch
- Overall dimensions - 84.0 x 44.0 x 10.0mm
- Same foot print as industry standard 16 x 2 alphanumeric LCD module
