Perform accurate hardware design validation and debugging with the Keysight DM34460A / 61A digital multimeter. Featuring built-in Truevolt technology, it delivers reliable, noise-free measurements with excellent resolution and accuracy. With its digitizer and graphing trend chart functions, it quickly uncovers critical test insights, keeping your project on track.

Key features:

• 7-inch dual-measurement color display.
• 0.0035% one-year DCV accuracy.
• Memory capacity up to 2 million readings.
• Reading speed up to 50,000/sec with digitizer and graphing capability.
• Measures 11 input signal types including DC/AC voltage & current, resistance (2- & 4-wire), frequency, continuity, diode, temperature, and capacitance.

Generate precise, low-distortion test signals with the Keysight FG33531A / 32A function and waveform generator. Built with Trueform technology, it offers low jitter, low total harmonic distortion, and high signal fidelity. Ideal for engineers needing accurate waveform reproduction, it enables fast and confident characterization of hardware designs.

Key features:

• 7-inch color display for simultaneous parameter setup, signal viewing, and editing.
• Jitter of less than 50 ps.
• Total harmonic distortion of less than 0.06%.
• 16-bit arbitrary waveform capability with up to 16 M samples per channel memory.
• Six built-in modulation types and 17 popular waveforms for simulating typical test applications.

Power your hardware designs with confidence using the Keysight E36441A bench power supply. With four independent outputs, adjustable slew rates, and sequencing capabilities, it delivers clean, reliable power for complex, multi-rail systems. Built for flexibility, it helps engineers validate and debug designs efficiently without compromising on precision.

Key features:

• 7-inch color display for parameter setup.
• Fast transient response to dynamic load changes.
• Accurate programming and readback for precise voltage and current control.
• Color-coded channels and individual knobs for voltage / current adjustment.
• Support for two-wire and four-wire remote sensing for accurate voltage regulation.
• Built-in data logger for data recording.

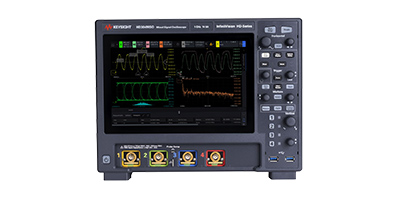

Debug and validate designs with precision using the Keysight HD304MSO oscilloscope. With four input channels and 4x signal resolution, it reveals small signal errors often hidden by noise. Perfect for engineers working on complex designs, it helps identify and fix issues quickly to improve product quality and reliability.

Key features:

• Four input channels with bandwidths ranging from 200 MHz to 1 GHz.
• 10.1-inch capacitive touch screen for easy signal viewing and analysis.
• Up to 100 million points of memory for capturing more data.
• 50 µVrms noise floor for detecting smaller signals.
• 1.3 M waveform / second update rate for enhanced signal detail.
