TLE9869EVALKITTOBO1

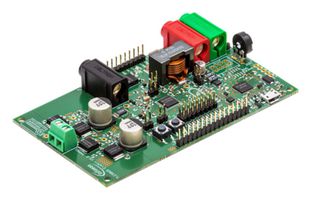

TLE9869EVALKITTOBO1 is a evaluation kit designed to provide a simple tool for getting familiar with TLE9869. The TLE9869 EvalKit offers complete evaluation of all functions and peripherals of the TLE9869QXA20 and allows direct connection to a DC motor via MOSFETS in an H- bridge configuration. It includes H-Bridge for DC motor drive, UART and LIN for communication, direct access to all device I/Os and a J-Link debugger. This board is intended to provide a simple, easy-to-use tool for getting familiar with Infineon’s embedded power IC TLE9869.

• 2-phase N-MOS bridge
• Single shunt in GND path
• Integrated LIN (inside device)
• Virtual ComPort via J-Link
• Debug LEDs
• Onboard Segger J-link debugger

Warnings

Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
