B82462G4103M
Power Inductor (SMD), 10 µH, 1.5 A, Shielded, 1.3 A, B82462G4 Series

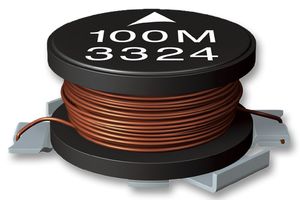

Image is for illustrative purposes only. Please refer to product description.
ManufacturerEPCOS
Manufacturer Part NoB82462G4103M
Order Code7430027
Product RangeB82462G4 Series
Technical Datasheet
4,367 In Stock
2,500 more incoming. You can reserve stock now
1-2 Working Days Delivery
Order before 17:00 standard shipping
| Quantity | Price (ex VAT) |
|---|---|
| 5+ | €1.180 |
| 50+ | €0.867 |
| 250+ | €0.757 |
| 500+ | €0.713 |
| 1000+ | €0.648 |
| 2500+ | €0.583 |
Price for:Each (Supplied on Cut Tape)
Minimum: 5
Multiple: 5
€5.90 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerEPCOS
Manufacturer Part NoB82462G4103M
Order Code7430027
Product RangeB82462G4 Series
Technical Datasheet
Inductance10µH
Inductor TypePower Inductor
RMS Current (Irms)1.5A
Inductor ConstructionShielded
Saturation Current (Isat)1.3A
Power Inductor Case6.3mm x 6.3mm x 3mm
Product RangeB82462G4 Series
Inductor Case / Package-
DC Resistance Max0.062ohm
Inductance Tolerance± 20%
Product Length6.3mm
Product Width6.3mm
Product Height3mm
Product Overview
The B82462G4103M is a surface mount shielded Power Inductor with ferrite core. This B82462G series magnetically shielded inductor features enamel copper wire and winding welded to terminals. This inductor's terminals are made of CuSn6 base Ag/Sn layer and electro-plated terminals. Supports 0.1MHz frequency and ±20% of inductance tolerance. It is suitable for reflow soldering.
- High rated current
- Low DC resistance
- Qualified to AEC-Q200 standard
Technical Specifications
Inductance
10µH
RMS Current (Irms)
1.5A
Saturation Current (Isat)
1.3A
Product Range
B82462G4 Series
DC Resistance Max
0.062ohm
Product Length
6.3mm
Product Height
3mm
Inductor Type
Power Inductor
Inductor Construction
Shielded
Power Inductor Case
6.3mm x 6.3mm x 3mm
Inductor Case / Package
-
Inductance Tolerance
± 20%
Product Width
6.3mm
SVHC
No SVHC (21-Jan-2025)
Technical Docs (2)
Alternatives for B82462G4103M
1 Product Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Hungary
Country in which last significant manufacturing process was carried out
Tariff No:85045000
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.000509
