Panel / Chassis Mount Resistors

: 6,186 Products Found

Filter Layout: LEFT

TOP

Contract pricing display is unavailable at the moment. Prices shown are standard retail prices, orders placed will have contract pricing applied when processed.

Open Filters

We offer ranges of Panel / Chassis Mount Resistors with values from 500µΩ to 0.5GΩ. Below are examples of our manufacturers and their technologies.

A panel/chassis mount resistor is manufactured using wirewound resistor technology and features a ceramic core that is moulded into an extruded aluminium chassis mount housing. The wirewound design maximises pulse handling and the aluminium housing allows for superior heat conduction. TE Connectivity offers chassis mount resistors that are engineered for a variety of applications, including motor control, braking systems, welding, and X-rays.

Vishay offers wirewound, industrial power, aluminium housed chassis mount resistors such as the RHXXX Series. These offer moulded construction for total environmental protection, with complete welded construction. They meet applicable requirements of MIL-PRF-18546. They are available in non-inductive styles (type NH) with Ayrton-Perry winding for lowest reactive components

They mount on chassis to utilize heat-sink effect, and offer excellent stability in operation (< 1 % change in resistance).

The WH series of panel/chassis mount resistors from TT Electronics/Welwyn are 50W axial leaded wirewound resistors with solder-dipped copper clad steel terminations. Cap and lead assemblies are fitted to a high purity ceramic substrate. The resistive element is wound onto the substrate and welded to the caps. The wound rod is then moulded and fitted into aluminium housing to give optimum stability and reliability. The aluminium housed wirewound resistor is suitable for severe environments and excellent thermal conductivity to heatsink. Typically used in high power applications.

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price	Quantity	Resistance	Product Range	Power Rating	Resistor Case / Package	Resistance Tolerance	Resistor Terminals	Voltage Rating	Resistor Technology	Temperature Coefficient	Resistor Type	Resistor Mounting	Product Length	Product Width	Product Height	Operating Temperature Min	Operating Temperature Max	Qualification
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending
HS10 2R2 J	2478140 Data Sheet + RoHS	Resistor, Axial Leaded, 2.2 ohm, HS Series, 10 W, ± 5%, Solder Lug, 160 V ARCOL You previously purchased this product. View in Order History	Each	1+ €3.05 5+ €2.89 10+ €2.73 25+ €2.57 50+ €2.03 200+ €1.75 1000+ €1.72 2000+ €1.68 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2.2ohm	HS Series	10W	-	± 5%	Solder Lug	-	Wirewound	± 100ppm/°C	High Power	Panel Mount	15.9mm	16.5mm	8.8mm	-	-	MIL-PRF-18546

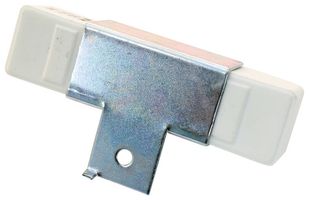

SQBW3010RJFASTON	2805366 Data Sheet + RoHS	Resistor, 10 ohm, SQB Series, 30 W, ± 5%, Quick Connect CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €3.12 3+ €2.92 5+ €2.72 10+ €2.47 20+ €2.21 50+ €1.81 250+ €1.68 500+ €1.58 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	10ohm	SQB Series	30W	Radial Leaded	± 5%	Quick Connect	-	Wirewound	± 300ppm/°C	High Power	Panel Mount	-	-	-	-55°C	250°C	-
THS252R7J	1259406 Data Sheet + RoHS Date/Lot Code	Resistor, Axial Leaded, 2.7 ohm, THS, 25 W, ± 5%, Solder Lug, 550 V CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €3.99 5+ €3.57 10+ €3.15 20+ €2.74 40+ €2.39 100+ €2.04 500+ €1.90 1000+ €1.86 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2.7ohm	THS	25W	-	± 5%	Solder Lug	550V	Wirewound	± 50ppm/°C	High Power	Panel Mount	29mm	28mm	15mm	-25°C	110°C	-
RH05047R00FE02	1692564 Data Sheet + RoHS	Resistor, 47 ohm, RH, 50 W, ± 1%, Solder Lug VISHAY You previously purchased this product. View in Order History	Each	1+ €7.05 2+ €6.17 3+ €6.05 5+ €5.92 10+ €5.80 20+ €5.68 50+ €5.55 100+ €5.43 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	47ohm	RH	50W	-	± 1%	Solder Lug	-	Wirewound	± 20ppm/°C	-	Chassis Mount	49.99mm	28.96mm	15.49mm	-55°C	250°C	MIL-PRF-18546
WH5-43RJI	9507922 Data Sheet + RoHS	Resistor, Axial Leaded, 43 ohm, WH, 10 W, ± 5%, Solder Lug, 160 V TT ELECTRONICS / WELWYN You previously purchased this product. View in Order History	Each	1+ €2.96 10+ €2.77 25+ €2.57 50+ €2.34 100+ €2.09 250+ €1.71 1250+ €1.59 2500+ €1.49 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	43ohm	WH	10W	-	± 5%	Solder Lug	-	Wirewound	± 50ppm/°C	High Power	Panel Mount	17mm	17mm	9mm	-55°C	275°C	-

HS50 R25 F	2678708 Data Sheet + RoHS Date/Lot Code	Resistor, Aluminium, 0.25 ohm, HS Series, 50 W, ± 1%, Solder Lug, 1.25 kV ARCOL You previously purchased this product. View in Order History	Each	1+ €4.51 3+ €4.42 5+ €4.33 10+ €4.24 20+ €4.15 50+ €4.06 250+ €3.97 500+ €3.88 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	0.25ohm	-	50W	-	-	-	1.25kV	-	-	-	-	49.1mm	28mm	14.8mm	-999°C	-999°C	-

FPA350 4K7 J	2836259 Data Sheet + RoHS Date/Lot Code	Resistor, Heatsink, 4.7 kohm, FPA350, 350 W, ± 5%, Screw, 5 kV ARCOL You previously purchased this product. View in Order History	Each	1+ €97.75 3+ €85.53 5+ €70.87 10+ €63.54 20+ €58.65 50+ €58.34 250+ €58.03 500+ €57.72 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	4.7kohm	FPA350	350W	-	± 5%	Screw	5kV	Thick Film	± 150ppm/°C	-	Panel Mount	-	-	32mm	-55°C	150°C	-

SQBW2068RJ	2805363 Data Sheet + RoHS Date/Lot Code	Resistor, 68 ohm, SQB Series, 20 W, ± 5%, Quick Connect CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €2.48 3+ €2.17 5+ €1.79 10+ €1.61 20+ €1.49 50+ €1.39 250+ €1.22 500+ €0.99 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	68ohm	SQB Series	20W	Radial Leaded	± 5%	Quick Connect	-	Wirewound	± 300ppm/°C	High Power	Panel Mount	-	-	-	-55°C	250°C	-

HSA1068RJ	2805176 Data Sheet + RoHS	Resistor, 68 ohm, HS Series, 16 W, ± 5%, Solder Lug, 265 V CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €2.50 5+ €2.36 10+ €2.22 25+ €2.09 50+ €1.70 200+ €1.32 1000+ €1.18 2000+ €1.16 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	68ohm	HS Series	16W	-	± 5%	Solder Lug	265V	Wirewound	± 50ppm/°C	High Power	Chassis Mount	21mm	21mm	11mm	-	-	-

HSA53R3J	2805230 Data Sheet + RoHS Date/Lot Code	Resistor, 3.3 ohm, HS Series, 10 W, ± 5%, Solder Lug, 160 V CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €2.69 5+ €2.56 10+ €2.42 20+ €2.27 40+ €2.08 100+ €1.40 500+ €1.32 1000+ €1.24 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	3.3ohm	HS Series	10W	-	± 5%	Solder Lug	-	Wirewound	± 50ppm/°C	High Power	Chassis Mount	17mm	17mm	9mm	-	-	-

SQBW404R7JFASTON	2805381 Data Sheet + RoHS Date/Lot Code	Resistor, 4.7 ohm, SQB Series, 40 W, ± 5%, Quick Connect CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €3.38 3+ €3.19 5+ €3.01 10+ €2.82 20+ €2.66 50+ €2.07 250+ €1.83 500+ €1.78 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	4.7ohm	SQB Series	40W	Radial Leaded	± 5%	Quick Connect	-	Wirewound	± 300ppm/°C	High Power	Panel Mount	-	-	-	-55°C	250°C	-

SQBW2047RJ	2805361 Data Sheet + RoHS	Resistor, 47 ohm, SQB Series, 20 W, ± 5%, Quick Connect CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €1.51 3+ €1.41 5+ €1.31 10+ €1.20 20+ €1.09 50+ €0.892 250+ €0.828 500+ €0.78 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	47ohm	SQB Series	20W	Radial Leaded	± 5%	Quick Connect	-	Wirewound	± 300ppm/°C	High Power	Panel Mount	-	-	-	-55°C	250°C	-

HSA56R8J	2805234 Data Sheet + RoHS Date/Lot Code	Resistor, 6.8 ohm, HS Series, 10 W, ± 5%, Solder Lug, 160 V CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €2.61 5+ €2.49 10+ €2.37 20+ €2.10 40+ €2.09 100+ €1.56 500+ €1.41 1000+ €1.25 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	6.8ohm	HS Series	10W	-	± 5%	Solder Lug	-	Wirewound	± 50ppm/°C	High Power	Chassis Mount	17mm	17mm	9mm	-	-	-

KHR 2-T227 10K00 G 1%	2565573 Data Sheet + RoHS	Resistor, Screw, 10 kohm, KHR 2-T227, 200 W, ± 1%, Screw, 1.5 kV POWERTRON You previously purchased this product. View in Order History	Each	1+ €26.87 2+ €24.23 3+ €22.42 5+ €21.33 10+ €20.10 20+ €19.72 50+ €19.33 100+ €18.77 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	10kohm	KHR 2-T227	200W	-	± 1%	Screw	-	Thick Film	± 100ppm/K	-	Panel Mount	38mm	26mm	11.9mm	-40°C	155°C	-

FPA100 330R J	2505113 Data Sheet + RoHS	Resistor, Screw, 330 ohm, FPA100, 100 W, ± 5%, Screw, 1 kV ARCOL You previously purchased this product. View in Order History	Each	1+ €18.74 2+ €16.39 3+ €15.69 5+ €15.00 10+ €14.30 20+ €13.63 50+ €12.70 100+ €12.49 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	330ohm	FPA100	100W	-	± 5%	Screw	-	Thick Film	± 100ppm/°C	High Frequency	Panel Mount	38.2mm	25.4mm	12.2mm	-55°C	155°C	-

SQBW201R0J	2805357 Data Sheet + RoHS	Resistor, 1 ohm, SQB Series, 20 W, ± 5%, Quick Connect CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €1.94 3+ €1.82 5+ €1.69 10+ €1.57 20+ €1.45 50+ €1.33 250+ €1.17 500+ €0.945 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	1ohm	SQB Series	20W	Radial Leaded	± 5%	Quick Connect	-	Wirewound	± 300ppm/°C	High Power	Panel Mount	-	-	-	-55°C	250°C	-

SQBW2010RJ.	2805353 Data Sheet + RoHS Date/Lot Code	Resistor, 10 ohm, SQB Series, 20 W, ± 5%, Quick Connect CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €1.98 3+ €1.84 5+ €1.71 10+ €1.57 20+ €1.44 50+ €1.31 250+ €1.22 500+ €1.20 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	10ohm	SQB Series	20W	Radial Leaded	± 5%	Quick Connect	-	Wirewound	± 300ppm/°C	High Power	Panel Mount	-	-	-	-55°C	250°C	-

HS50F 8R2 F 200MM M404.	3225489 Data Sheet + RoHS	Resistor, 8.2 ohm, HSF, 50 W, ± 1%, Wire Leaded, 1.25 kV OHMITE You previously purchased this product. View in Order History	Each	1+ €9.00 2+ €8.35 3+ €7.97 5+ €7.47 10+ €6.89 20+ €5.80 50+ €5.43 100+ €5.17 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	8.2ohm	HSF	50W	-	± 1%	Wire Leaded	1.25kV	Wirewound	± 100ppm/°C	High Power	Panel Mount	49.1mm	28mm	14.8mm	-	-	-

HS100F 8R F 200MM M372.	3225433 Data Sheet + RoHS Date/Lot Code	Resistor, 8 ohm, HSF, 100 W, ± 1%, Wire Leaded, 1.8 kV OHMITE You previously purchased this product. View in Order History	Each	1+ €13.62 2+ €11.92 3+ €11.52 5+ €11.12 10+ €10.72 20+ €9.52 50+ €8.93 100+ €8.60 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	8ohm	HSF	100W	-	± 1%	Wire Leaded	1.8kV	Wirewound	± 100ppm/°C	High Power	Panel Mount	65.2mm	47.5mm	24.1mm	-	-	-

LPR50 270R J	2925404 Data Sheet + RoHS Date/Lot Code	Resistor, 270 ohm, LPR, 50 W, ± 5%, Wire Leaded ARCOL You previously purchased this product. View in Order History	Each	1+ €3.51 2+ €3.07	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	270ohm	LPR	50W	-	± 5%	Wire Leaded	-	Wirewound	± 100ppm/°C	Low Profile	Panel Mount	50mm	75mm	5.7mm	-	250°C	-

HS25F 4R7 F M404	3225523 Data Sheet + RoHS Date/Lot Code	Resistor, 4.7 ohm, HSF, 25 W, ± 1%, Wire Leaded, 550 V OHMITE You previously purchased this product. View in Order History	Each	1+ €8.51 5+ €7.90 10+ €7.53 25+ €7.06 50+ €6.51 200+ €5.49 1000+ €5.13 2000+ €4.89 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	4.7ohm	HSF	25W	-	± 1%	Wire Leaded	550V	Wirewound	± 100ppm/°C	High Power	Panel Mount	27.3mm	28mm	14.8mm	-	-	-

HS50F R1 J M404	3225491 Data Sheet + RoHS Date/Lot Code	Resistor, 0.1 ohm, HSF, 50 W, ± 5%, Wire Leaded, 1.25 kV OHMITE You previously purchased this product. View in Order History	Each	1+ €9.00 5+ €8.35 10+ €7.97 25+ €7.47 50+ €6.89 200+ €5.80 1000+ €5.43 2000+ €5.17 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	0.1ohm	HSF	50W	-	± 5%	Wire Leaded	1.25kV	Wirewound	± 100ppm/°C	High Power	Panel Mount	49.1mm	28mm	14.8mm	-	-	-

HS50F 20R F 200MM M404.	3225453 Data Sheet + RoHS Date/Lot Code	Resistor, 20 ohm, HSF, 50 W, ± 1%, Wire Leaded, 1.25 kV OHMITE You previously purchased this product. View in Order History	Each	1+ €10.22 2+ €8.94 3+ €8.64 5+ €8.34 10+ €8.04 20+ €7.15 50+ €6.70 100+ €6.30 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	20ohm	HSF	50W	-	± 1%	Wire Leaded	1.25kV	Wirewound	± 100ppm/°C	High Power	Panel Mount	49.1mm	28mm	14.8mm	-	-	-

THS101K5J	1259329 Data Sheet + RoHS	Resistor, Axial Leaded, 1.5 kohm, THS, 10 W, ± 5%, Solder Lug, 160 V CGS - TE CONNECTIVITY You previously purchased this product. View in Order History	Each	1+ €2.35 5+ €2.23 10+ €2.10 20+ €1.85 40+ €1.82 100+ €1.37 500+ €1.24 1000+ €1.10 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	1.5kohm	THS	10W	-	± 5%	Solder Lug	-	Wirewound	± 30ppm/°C	High Power	Panel Mount	17mm	17mm	9mm	-25°C	165°C	-

WPRT20AB-2R2JB270	2251100 Data Sheet + RoHS Date/Lot Code	Resistor, 2.2 ohm, WPRT Series, 20 W, ± 5%, Solder Lug TT ELECTRONICS / WELWYN You previously purchased this product. View in Order History	Each	1+ €1.94 50+ €1.66 100+ €1.38 250+ €1.24 500+ €1.07 810+ €1.01 4050+ €0.99 8100+ €0.97 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	2.2ohm	WPRT Series	20W	-	± 5%	Solder Lug	-	Wirewound	± 400ppm/°C	High Power, Flame Proof	Panel Mount	63mm	12.5mm	13.5mm	-55°C	155°C	AEC-Q200
