TX MID 5V
RF MOD, TX, AM, OOK, 5V, 433.92MHZ

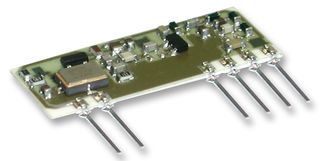

Image is for illustrative purposes only. Please refer to product description.
No Longer Stocked
Product Overview
TX MID 5V is a SAW Transmitter module with external antenna for utilization with ON-OFF modulation of a RF carrier with digital data. Buffer stage for enhanced power and low harmonics on output allows high immunity against dis adjustments.
- Operating frequency is 433.92MHz
- Supply voltage is 3.5 to 5.5V
- 25.4 x 12.43 x 2.5mm
- RF output with a characteristic impedance of 50ohm
- AM OOK transmitter module
- Buffer stage for enhanced power, low harmonics on o/p allows high immunity against dis adjustments
- No antenna installed. Whip antenna or external 50R antenna mountable
Applications
Wireless, Communications & Networking, RF Communications
Technical Specifications
RF Modulation
OOK
Frequency
433.92MHz
Supply Voltage Min
3.5V
Supply Current
5.7mA
Product Range
-
Data Rate Max
-
Sensitivity dBm
-
Supply Voltage Max
5.5V
RF Transmitter Applications
-
SVHC
No SVHC (17-Dec-2014)
Technical Docs (1)
Associated Products
2 Products Found
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Italy
Country in which last significant manufacturing process was carried out
Tariff No:85389091
US ECCN:EAR99
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:To be advised
SVHC:No SVHC (17-Dec-2014)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):.001147
