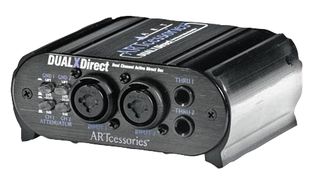

DUAL X DIRECT

The DUALXDirect provides two independent high quality active interfaces that let you connect instrument, line, or speaker level signals to a mixer or other balanced inputs. Each of the high impedance ¼"/XLR inputs combo jacks are buffered and converted by very low noise active electronics into an isolated, balanced, low impedance signal output. The DUALXDirect has an extremely flat and wide frequency response and can handle high signal levels. This gives the DUALXDirect a very clean and neutral sound with a wide variety of signal sources and over long signal runs in high noise environments.

• Fully active design
• Phantom voltage or 9V battery powered
• Converts high-impedance balanced/unbalanced inputs into 600Ω balanced outputs
• Switchable ground lift
• Rugged extruded aluminium case
• Input Connections: 2x XLR female/6.35mm (¼") TRS combo connectors
• Thru Connections: 2x 6.35mm (¼") TRS
• Output Connections: 2x XLR male balanced
• Frequency Response: 10Hz-100kHz, ±0.5dB
• Maximum Input Level: +4, +34dBu
• Maximum Output Level: +6dBu (battery powered), +14dBu (phantom powered)
• Input Attenuation: Switchable 0, -30dB
• Dynamic Range: <gt/>100dB (typical)
• Channel Separation: <gt/>80dB (typical)
• THD: <lt/>0.05% (typical)
• Power: 9V PP3 or 18-48V DC @ 6.4mA
• Dimensions (WxHxD): 117x47x99mm
• Weight: 380g
