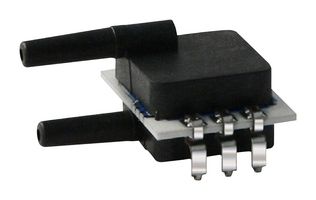

HDIM100DBE8P5

HDIM100DBE8P5 is a HDI series amplified pressure sensor. It performs precision digital signal conditioning and provides analog and digital output at the same time. The sensor is calibrated, temperature compensated and linearized and achieve very high total accuracies. It is intended to be used with dry and non-corrosive gases. Miniature housings allow for space-saving PCB-mounting and maximum OEM design flexibility. Sensor can be modified according to customer-specific requirements. To be used with non-corrosive, nonionic working fluids such as clean dry air, dry gases. Applications include medical devices, instrumentation, HVAC, industrial controls, pneumatic controls, environmental controls.

• Digital I²C bus and analog output
• Precision ASIC signal conditioning
• Calibrated and temperature compensated
• Supply voltage VS range from 4.5VDC to 5.5VDC
• 1mA output current (sink/source), -20 to +85°C operating temperature range
• 0 to ±100mbar operating pressure, 1bar proof pressure, 1.5bar burst pressure
• Differential pressure mode
• Bidirectional calibration
• SMD, 2 ports same side housing
• Straight porting, prime grade
