We offer a wide range of fixed network resistors, as well as resistor arrays. Both SMT and through hole types are available.

What is a resistor network?

Usually, resistor networks combine several resistors of one value in a package, dual-in-line or single-in-line, either all separate or connected to a single terminal.

Resistor networks are available using two technologies, the universal thick film type and the less widely available thin film. Thick film networks have no better tolerance and drift specifications than conventional resistors, and so they cannot be used in demanding applications. However, because all resistors in a package are constructed by simultaneously screen printing a resistive ink onto a substrate, manufacturers can guarantee a better temperature coefficient tracking between resistors than an absolute temperature coefficient for each resistor.

A typical performance is 250 ppm/°C individually, but a tracking of 50 ppm/°C, i.e., all resistors within the package will exhibit the same temperature coefficient to within 50 ppm/°C. Thin film types can show an order of magnitude better performance.

This feature can be made use of in precision amplifier circuits, and in some instrumentation amplifiers it is essential to meet performance requirements.

Why use a resistor network?

Resistor networks and arrays are a useful item in the design engineer’s component kit. These networks combine from three to over twenty resistors in a single IC-like package. They increase design and layout options and can enhance performance when making the transition from the schematic circuit diagram to actual layout and bill of materials (BOM). Arrays are simply a subset of networks, in which all elements have the same ohmic value.

The network is especially beneficial when the design needs multiple pull-up, line-termination, or gain-setting resistors. Among the strongest cases for using such a network is the inherent matching it offers with respect to changes in resistance due to temperature shifts, a consequence of the common thermal substrate. This is an important consideration in many sensor- and interface-related applications where balanced or ratiometric circuits facilitate cancellation of drift-related errors. It’s important to remember that, whilst discrete resistors can provide close TCR matching, through selection or tight absolute TCR, they can never offer matching of actual element temperatures.

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price	Quantity	Resistance	Network Circuit Type	No. of Resistors	Resistor Case / Package	Resistor Terminals	Voltage Rating	Power Rating per Resistor	Resistance Tolerance	Temperature Coefficient	Resistor Type	Resistor Technology	Resistor Mounting	Terminal Pitch	Power Rating	Product Length	Product Width	Product Height	Operating Temperature Min	Operating Temperature Max	Qualification
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending
4310R-R2R-103LF	2112797 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 10 kohm, R-2R Ladder, 5 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €1.19 10+ €0.909 100+ €0.708 500+ €0.639 1000+ €0.603 2000+ €0.594 4000+ €0.582 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	10kohm	R-2R Ladder	5Resistors	SIP	PC Pin	-	-	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1.25W	24.99mm	2.16mm	4.95mm	-55°C	125°C	-

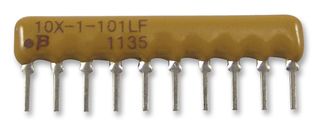

4610X-101-101LF	9357106 Data Sheet + RoHS	Fixed Network Resistor, 100 ohm, Bussed, 9 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €0.229 50+ €0.176 100+ €0.123 250+ €0.111 500+ €0.10 1000+ €0.088 5000+ €0.086 10000+ €0.085 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	100ohm	Bussed	9Resistors	SIP	PC Pin	-	200mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1.25W	25.35mm	2.49mm	5.08mm	-55°C	125°C	-
CAY16-474J4LF	2321748 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 470 kohm, Isolated, 4 Resistors, 1206 [3216 Metric], Convex, ± 5% BOURNS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2321748 2321748RL in Re-Reel	10+ €0.024	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	470kohm	Isolated	4Resistors	1206 [3216 Metric]	Convex	-	62mW	± 5%	± 200ppm/°C	Array	-	Surface Mount Device	0.8mm	250mW	3.2mm	1.6mm	0.5mm	-55°C	125°C	-
4611X-101-102LF	2908126 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 1 kohm, Bussed, 10 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €0.518 10+ €0.246 50+ €0.205 100+ €0.163 200+ €0.16	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	1kohm	Bussed	10Resistors	SIP	PC Pin	-	200mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1.38W	27.89mm	2.49mm	5.08mm	-55°C	125°C	-
4116R-2-103LF	2908097 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 10 kohm, Bussed, 15 Resistors, DIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €1.81 3+ €1.67 5+ €1.54 10+ €1.40 20+ €1.31 50+ €1.22 250+ €1.04 500+ €0.963 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	10kohm	Bussed	15Resistors	DIP	PC Pin	-	125mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	2.25W	21.97mm	6.71mm	4.57mm	-55°C	125°C	-

4610X-102-221LF	9357297 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 220 ohm, Isolated, 5 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €0.188 50+ €0.184	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	220ohm	Isolated	5Resistors	SIP	PC Pin	-	300mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1.25W	25.35mm	2.49mm	5.08mm	-55°C	125°C	-

TC164-JR-0782RL	9234993 Data Sheet + RoHS	Fixed Network Resistor, 82 ohm, Isolated, 4 Resistors, 1206 [3216 Metric], Concave, ± 5% YAGEO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:9234993 9234993RL in Re-Reel 2693958 in Full Reel	10+ €0.092 100+ €0.038 500+ €0.027 1000+ €0.017 2500+ €0.016	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	82ohm	Isolated	4Resistors	1206 [3216 Metric]	Concave	-	62.5mW	± 5%	± 200ppm/°C	Array	Thick Film	Surface Mount Device	0.8mm	63mW	3.2mm	1.6mm	0.6mm	-55°C	155°C	-

4610X-102-471LF	9357335 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 470 ohm, Isolated, 5 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €0.174 50+ €0.171	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	470ohm	Isolated	5Resistors	SIP	PC Pin	-	300mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1.25W	25.35mm	2.49mm	5.08mm	-55°C	125°C	-

CAT10-101J4LF	2008284 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 100 ohm, Isolated, 4 Resistors, 0804 [2010 Metric], Concave, ± 5% BOURNS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2008284 2008284RL in Re-Reel 2691957 in Full Reel	10+ €0.0396 100+ €0.018	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	100ohm	Isolated	4Resistors	0804 [2010 Metric]	Concave	25V	62mW	± 5%	± 250ppm/°C	Array	Thick Film	Surface Mount Device	0.5mm	125mW	2mm	1mm	0.4mm	-55°C	125°C	-

4114R-1-151LF	9355669 Data Sheet + RoHS	Fixed Network Resistor, 150 ohm, Isolated, 7 Resistors, DIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €1.79 3+ €1.67 5+ €1.55 10+ €1.43 20+ €1.32 50+ €1.20 250+ €1.08 500+ €0.872 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	150ohm	Isolated	7Resistors	DIP	PC Pin	-	250mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	2W	19.43mm	6.71mm	4.57mm	-55°C	125°C	-

MCRE000213	1711697 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 100 ohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 1% MULTICOMP PRO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:1711697 2692321 in Full Reel 1711697RL in Re-Reel	10+ €0.033 100+ €0.024 500+ €0.014 2500+ €0.009 5000+ €0.008	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	100ohm	Isolated	4Resistors	0804 [2010 Metric]	Convex	25V	-	± 1%	± 200ppm/°C	Array	Thick Film	Surface Mount Device	0.5mm	62.5mW	2mm	1mm	0.45mm	-55°C	125°C	-

YC164-FR-07220RL	1086548 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 220 ohm, Isolated, 4 Resistors, 1206 [3216 Metric], Convex, ± 1% YAGEO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape	10+ €0.065 100+ €0.03 500+ €0.025 1000+ €0.019 2500+ €0.016 5000+ €0.012 25000+ €0.0118 50000+ €0.0115 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	220ohm	Isolated	4Resistors	1206 [3216 Metric]	Convex	-	62.5mW	± 1%	± 200ppm/°C	Array	Thick Film	Surface Mount Device	0.8mm	62.5mW	3.2mm	1.6mm	0.6mm	-55°C	155°C	-

CAY16-391J4LF	2787792 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 390 ohm, Isolated, 4 Resistors, 1206 [3216 Metric], Convex, ± 5% BOURNS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:2787792 2787792RL in Re-Reel	10+ €0.031	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	390ohm	Isolated	4Resistors	1206 [3216 Metric]	Convex	-	62.5mW	± 5%	± 200ppm/°C	Array	-	Surface Mount Device	0.8mm	250mW	3.2mm	1.6mm	0.5mm	-55°C	125°C	-

4609X-101-821LF	2908118 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 820 ohm, Bussed, 8 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €0.176 50+ €0.146 100+ €0.116 250+ €0.10 500+ €0.084 1000+ €0.068 5000+ €0.067 10000+ €0.065 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	820ohm	Bussed	8Resistors	SIP	PC Pin	-	200mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1.13W	22.81mm	2.49mm	5.08mm	-55°C	125°C	-

4609M-101-103LF	2908113 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 10 kohm, Bussed, 8 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €0.607 10+ €0.373 50+ €0.321 100+ €0.268 200+ €0.249 500+ €0.231 2500+ €0.212 5000+ €0.193 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	10kohm	Bussed	8Resistors	SIP	PC Pin	-	250mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1.35W	22.81mm	2.49mm	6.35mm	-55°C	125°C	-

4816P-R2R-103LF	2908131 Data Sheet + RoHS	Fixed Network Resistor, 10 kohm, R-2R Ladder, 16 Resistors, SOIC, Gull Wing, ± 2% BOURNS You previously purchased this product. View in Order History	Each	5+ €1.15 50+ €1.01 250+ €0.832 500+ €0.712	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	10kohm	R-2R Ladder	16Resistors	SOIC	Gull Wing	-	125mW	± 2%	± 100ppm/°C	Network	Thick Film	Surface Mount Device	1.27mm	1.28W	11.18mm	5.59mm	2.16mm	-55°C	125°C	AEC-Q200

CAY16-240J4LF	2908181 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 24 ohm, Isolated, 4 Resistors, 1206 [3216 Metric], Convex, ± 5% BOURNS You previously purchased this product. View in Order History	Each	10+ €0.029 100+ €0.013 500+ €0.012 1000+ €0.01 2500+ €0.008 5000+ €0.007 25000+ €0.006 50000+ €0.0059 More Pricing...	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	24ohm	Isolated	4Resistors	1206 [3216 Metric]	Convex	-	63mW	± 5%	± 200ppm/°C	Array	-	Surface Mount Device	0.8mm	250mW	3.2mm	1.6mm	0.5mm	-55°C	125°C	-

MP005598	3550020 Data Sheet + RoHS	Fixed Network Resistor, 33 ohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 5% MULTICOMP PRO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:3550020 3550145 in Full Reel 3550020RL in Re-Reel	10+ €0.022 100+ €0.02 500+ €0.014 2500+ €0.007 5000+ €0.006	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	33ohm	Isolated	4Resistors	0804 [2010 Metric]	Convex	-	63mW	± 5%	± 200ppm/°C	Array	Thick Film	Surface Mount Device	0.5mm	-	2mm	1mm	0.45mm	-55°C	155°C	-

YC124-JR-0751RL	3497074RL Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 51 ohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 5% YAGEO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Re-Reel Packaging Options Suggested replacement for:3497074RL 3497074 in Cut Tape A €5.00 re-reeling charge will be added for this product	500+ €0.009 2500+ €0.008 5000+ €0.007 10000+ €0.006 50000+ €0.0059 100000+ €0.0058 More Pricing...	Restricted Item Minimum order of 500 items Multiples of 10 only Please enter a valid quantity Add Min: 500 Mult: 10	-	-	-	-	-	-	-	-	-	Array	Thick Film	Surface Mount Device	0.5mm	-	2mm	1mm	0.45mm	-55°C	155°C	-

MP005610	3550033 Data Sheet + RoHS	Fixed Network Resistor, 560 ohm, Isolated, 4 Resistors, 0804 [2010 Metric], Convex, ± 5% MULTICOMP PRO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:3550033 3550158 in Full Reel 3550033RL in Re-Reel	10+ €0.023 100+ €0.02 500+ €0.014 2500+ €0.007 5000+ €0.0069	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	560ohm	Isolated	4Resistors	0804 [2010 Metric]	Convex	-	63mW	± 5%	± 200ppm/°C	Array	Thick Film	Surface Mount Device	0.5mm	-	2mm	1mm	0.45mm	-55°C	155°C	-

MP005669	3550099 Data Sheet + RoHS	Fixed Network Resistor, 5.1 kohm, Isolated, 4 Resistors, 1206 [3216 Metric], Convex, ± 5% MULTICOMP PRO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:3550099 3550223 in Full Reel 3550099RL in Re-Reel	10+ €0.026 100+ €0.023 500+ €0.011 1000+ €0.008 2500+ €0.007	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	5.1kohm	Isolated	4Resistors	1206 [3216 Metric]	Convex	-	63mW	± 5%	± 200ppm/°C	Array	Thick Film	Surface Mount Device	0.8mm	-	3.2mm	1.6mm	0.5mm	-55°C	155°C	-

YC164-JR-072KL	3497078 Data Sheet + RoHS	Fixed Network Resistor, 2 kohm, Isolated, 4 Resistors, 1206 [3216 Metric], Convex, ± 5% YAGEO You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:3497078 3497078RL in Re-Reel	10+ €0.035 100+ €0.016 500+ €0.014 1000+ €0.011 2500+ €0.0108	Restricted Item Minimum order of 10 items Multiples of 10 only Please enter a valid quantity Add Min: 10 Mult: 10	2kohm	Isolated	4Resistors	1206 [3216 Metric]	Convex	-	62.5mW	± 5%	± 200ppm/°C	Array	Thick Film	Surface Mount Device	0.8mm	-	3.2mm	1.6mm	0.6mm	-55°C	155°C	AEC-Q200

4608X-101-221LF	9356401 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 220 ohm, Bussed, 7 Resistors, SIP, PC Pin, ± 2% BOURNS You previously purchased this product. View in Order History	Each	1+ €0.157 50+ €0.154	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	220ohm	Bussed	7Resistors	SIP	PC Pin	-	200mW	± 2%	± 100ppm/°C	Network	Thick Film	Through Hole	2.54mm	1W	20.27mm	2.49mm	5.08mm	-55°C	125°C	-

4816P-T02-472LF	9357645 Data Sheet + RoHS Date/Lot Code	Fixed Network Resistor, 4.7 kohm, Bussed, 15 Resistors, SOIC, Gull Wing, ± 2% BOURNS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:9357645 9357645RL in Re-Reel	1+ €1.01 3+ €0.904 5+ €0.799 10+ €0.693 20+ €0.642 50+ €0.59 250+ €0.54 500+ €0.469 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	4.7kohm	Bussed	15Resistors	SOIC	Gull Wing	-	80mW	± 2%	± 100ppm/°C	Network	Thick Film	Surface Mount Device	1.27mm	1.28W	11.18mm	5.59mm	2.16mm	-55°C	125°C	-

4816P-T02-102LF	9357572 Data Sheet + RoHS	Fixed Network Resistor, 1 kohm, Bussed, 15 Resistors, SOIC, Gull Wing, ± 2% BOURNS You previously purchased this product. View in Order History	Each (Supplied on Cut Tape) Cut Tape Packaging Options Suggested replacement for:9357572 9357572RL in Re-Reel	1+ €0.879 3+ €0.826 5+ €0.773 10+ €0.72 20+ €0.666 50+ €0.612 250+ €0.532 500+ €0.469 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	1kohm	Bussed	15Resistors	SOIC	Gull Wing	-	80mW	± 2%	± 100ppm/°C	Network	Thick Film	Surface Mount Device	1.27mm	1.28W	11.18mm	5.59mm	2.16mm	-55°C	125°C	-
