We offer a wide range of slide potentiometers, including low profile and motorised types. Ratings range from 1Ω to 250kΩ.

How does a slide potentiometer work?

Linear or slide potentiometers produce a resistance output that varies according to the displacement or position of a slider or wiper. They are variable resistors with three leads. Two leads connect to the ends of the resistor, so the resistance between them is fixed. The third lead connects to a slider that travels along the resistor varying the resistance between it and the other two connections. The resistance element is excited by either DC or AC voltage.

Note that "Linear" can also refer to the taper (law) defining how the output voltage varies with the motion of the slider. A linear taper means that resistance increases in direct proportion to the distance travelled along the resistive element. This contrasts with a change in resistance via a logarithmic scale (a log or audio taper).

Resistive element types can be carbon (inexpensive), cermet (relatively limited life), conductive plastic (long life), or wire wound (current drawn during use).

Compare Selected Compare (0)

Sort by

Best Match

Best Match Price: Low to High Price: High to Low Stock: Low to High Stock: High to Low

Manufacturer Part No	Order Code	Description / Manufacturer	Price For	Price	Quantity	Slide Potentiometer Type	Track Resistance	Power Rating	Resistance Tolerance	Track Taper	Temperature Coefficient	Potentiometer Mounting	Length of Travel	Resistive Element	Lever Length	Product Range	Resistor Technology	Potentiometer Terminals	Product Length	Product Width	Product Height	Operating Temperature Min	Operating Temperature Max
						Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending	Sort Acending Sort Decending
RS60N11	1191712 Data Sheet RoHS	Slide Potentiometer, Standard Type, 10 kohm, ± 20%, Log (Audio), Through Hole ALPS ALPINE You previously purchased this product. View in Order History	Each	1+ €6.73 3+ €5.92 5+ €5.02 10+ €4.54 20+ €4.14 50+ €3.78 250+ €3.58 500+ €3.39 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Standard Type	10kohm	-	± 20%	Log (Audio)	-	Through Hole	60mm	-	8.2mm	RS	-	PC Pin	88mm	16mm	8mm	-10°C	60°C
PTB6044-2010BPA103	1688413 Data Sheet + RoHS Date/Lot Code	Slide Potentiometer, Slide, Low Profile, 10 kohm, ± 20%, 125 mW, Log (Audio), Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €5.42 5+ €4.79 10+ €4.15 20+ €3.79 40+ €3.42 100+ €3.06 500+ €2.89 1000+ €2.70 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	125mW	± 20%	Log (Audio)	-	Through Hole	60mm	-	10mm	PTB	Carbon	PC Pin	88mm	15mm	8mm	-10°C	50°C

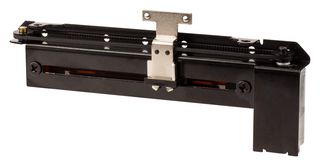

PSM60-082A-103B2	2530215 Data Sheet + RoHS	Slide Potentiometer, Slide, Motorized, 10 kohm, ± 20%, 500 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €38.77 5+ €33.92 10+ €28.11 20+ €25.20 40+ €23.27 60+ €21.71 300+ €20.55 600+ €19.77 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Motorized	10kohm	500mW	± 20%	Linear	-	Through Hole	60mm	-	8.2mm	PSM	Carbon	Snap-in	112mm	13mm	35mm	-10°C	55°C
PSL01-1082A-103B1	2838882 Data Sheet + RoHS Date/Lot Code	Slide Potentiometer, Motorized, 10 kohm, ± 20%, 500 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €36.53 5+ €34.79 10+ €33.04 25+ €26.12 50+ €25.61 120+ €23.12 600+ €22.66 1200+ €22.20 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Motorized	10kohm	500mW	± 20%	Linear	-	Through Hole	100mm	-	8.2mm	PSL	-	Snap-in	157mm	15mm	25.6mm	-10°C	70°C
PSL60-1082A-103B1	2838883 Data Sheet + RoHS	Slide Potentiometer, Motorized, 10 kohm, ± 20%, 500 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €35.56 5+ €33.88 10+ €32.20 25+ €25.77 50+ €24.96 120+ €21.67 600+ €21.24 1200+ €21.03 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Motorized	10kohm	500mW	± 20%	Linear	-	Through Hole	60mm	-	8.2mm	PSL	-	Snap-in	117mm	15mm	25.6mm	-10°C	70°C

PTA4544-2015DPA103	1688416 Data Sheet + RoHS	Slide Potentiometer, Slide, Low Profile, 10 kohm, ± 20%, 60 mW, Log (Audio), Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €2.52 5+ €2.16 10+ €1.80 20+ €1.70 40+ €1.59 100+ €1.49 500+ €1.25 1000+ €1.17 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	60mW	± 20%	Log (Audio)	-	Through Hole	45mm	-	15mm	PTA	Carbon	PC Pin	60mm	9mm	6.5mm	-10°C	50°C

PTB6043-2010BPB103	1688410 Data Sheet + RoHS	Slide Potentiometer, Slide, Low Profile, 10 kohm, ± 20%, 250 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €6.00 5+ €5.13 10+ €4.26 20+ €3.87 40+ €3.48 100+ €3.09 500+ €2.77 1000+ €2.71 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	250mW	± 20%	Linear	-	Through Hole	60mm	-	10mm	PTB	Carbon	PC Pin	88mm	15mm	8mm	-10°C	50°C

RS4511150K	1191730 Data Sheet RoHS	Slide Potentiometer, Standard Type, 50 kohm, ± 20%, 125 mW, Linear, Through Hole ALPS ALPINE You previously purchased this product. View in Order History	Each	1+ €4.75 50+ €4.52 100+ €4.28 250+ €3.85 500+ €3.38 1300+ €2.94 6500+ €2.50 13000+ €2.12 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Standard Type	50kohm	125mW	± 20%	Linear	-	Through Hole	45mm	-	20mm	RS	-	PC Pin	60mm	8mm	7mm	-	-

PTA6043-2015DPB103	1688411 Data Sheet Data Sheet + RoHS	Potentiometer, Slide, 60mm Travel, 10 kohm, 250 mW, ± 20%, PTA Series, Linear BOURNS You previously purchased this product. View in Order History	Each	1+ €2.46 5+ €2.11 10+ €1.76 20+ €1.60 40+ €1.45 100+ €1.29 500+ €1.28 1000+ €1.16 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	250mW	± 20%	Linear	-	Through Hole	60mm	-	15mm	PTA	Carbon	PC Pin	75mm	9mm	6.5mm	-10°C	50°C

STRS30102K	1191729 Data Sheet RoHS	Potentiometer, Slide, 30mm Travel, 50 kohm, 100 mW, ± 20%, RS Series, Linear ALPS ALPINE You previously purchased this product. View in Order History	Each	1+ €3.19 5+ €3.03 10+ €2.88 25+ €2.58 50+ €2.27 144+ €1.97 720+ €1.68 1440+ €1.42 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Standard Type	50kohm	100mW	± 20%	Linear	-	Through Hole	30mm	-	-	STRS	-	PC Pin	45mm	8mm	7mm	-	-

RS3011110K	1191726 Data Sheet RoHS	Slide Potentiometer, Slide, Standard Type, 10 kohm, ± 20%, 100 mW, Log (Audio), Through Hole ALPS ALPINE You previously purchased this product. View in Order History	Each	5+ €5.97 50+ €5.68 250+ €5.38 500+ €4.84 1500+ €4.25 2880+ €3.69 14400+ €3.14 28800+ €2.67 More Pricing...	Restricted Item Minimum order of 5 items Multiples of 5 only Please enter a valid quantity Add Min: 5 Mult: 5	Standard Type	10kohm	100mW	± 20%	Log (Audio)	-	Through Hole	30mm	-	20mm	RS	-	PC Pin	45mm	8mm	7mm	-	-

PTA4543-2015DPB103	1688415 Data Sheet + RoHS	Slide Potentiometer, Slide, Low Profile, 10 kohm, ± 20%, 250 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €2.23 5+ €1.88 10+ €1.53 20+ €1.44 40+ €1.34 100+ €1.25 500+ €1.11 1000+ €0.986 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	250mW	± 20%	Linear	-	Through Hole	45mm	-	15mm	PTA	Carbon	PC Pin	60mm	9mm	6.5mm	-10°C	50°C

PTL30-15G1-103B1	2469523 Data Sheet + RoHS Date/Lot Code	Slide Potentiometer, Slide, Standard Type with LED, 10 kohm, ± 20%, 100 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €2.04 50+ €1.81 100+ €1.57 250+ €1.49 500+ €1.41 1200+ €1.23 6000+ €1.21 12000+ €1.19 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Standard Type with LED	10kohm	100mW	± 20%	Linear	-	Through Hole	30mm	-	15mm	PTL	Carbon	PC Pin	45mm	9mm	7mm	-10°C	55°C

PTL01-15R0-103B1	2706336 Data Sheet + RoHS Date/Lot Code	Potentiometer, 10 kohm, 200 mW, ± 20%, 100mm Travel, PTL Series, Linear BOURNS You previously purchased this product. View in Order History	Each	1+ €4.93 50+ €4.46 100+ €3.99 250+ €3.75 500+ €3.53 960+ €3.28 4800+ €3.21 9600+ €3.15 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Standard Type with LED	10kohm	200mW	± 20%	Linear	-	Through Hole	100mm	-	15mm	PTL	Carbon	PC Pin	128mm	9.3mm	7mm	-10°C	55°C

PTB0143-2010BPB103	1688409 Data Sheet + RoHS Date/Lot Code	Slide Potentiometer, Slide, Low Profile, 10 kohm, ± 20%, 500 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €6.09 5+ €5.26 10+ €4.42 20+ €4.04 40+ €3.65 100+ €3.27 500+ €3.07 1000+ €3.01 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	500mW	± 20%	Linear	-	Through Hole	100mm	-	10mm	PTB	Carbon	PC Pin	128mm	15mm	8mm	-10°C	50°C

404R5KL1.0	1330291 Data Sheet + RoHS Date/Lot Code	LINEAR MOTION POTENTIOMETER, 5KOHM, 10%, 250mW TT ELECTRONICS / BI TECHNOLOGIES You previously purchased this product. View in Order History	Each	1+ €26.43 5+ €25.23 10+ €22.82 25+ €21.02 50+ €18.62 100+ €18.01 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	5kohm	250mW	± 10%	-	-	-	12.7mm	-	-	404 Series	Conductive Plastic	Turret	26.92mm	12.7mm	8.51mm	-55°C	125°C

3048L-5-103	1743598 Data Sheet + RoHS Date/Lot Code	LINEAR MOTION POTENTIOMETER, 10KOHM, 20%, 250mW BOURNS You previously purchased this product. View in Order History	Each	1+ €45.93 5+ €43.38 10+ €40.83 25+ €33.68 50+ €31.64	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	0	-	± 20%	-	-	-	0	-	-	3048 Series	0	Wire Leaded	0	0	0	-	-

404R1KL1.0	1305319 Data Sheet + RoHS Date/Lot Code	LINEAR MOTION POTENTIOMETER, 1KOHM, 10%, 250mW TT ELECTRONICS / BI TECHNOLOGIES You previously purchased this product. View in Order History	Each	1+ €26.43 5+ €25.23 10+ €22.82 25+ €21.02 50+ €18.62 100+ €18.01 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	-	1kohm	250mW	± 10%	-	-	-	12.7mm	-	-	404 Series	Conductive Plastic	Turret	26.92mm	12.7mm	8.51mm	-55°C	125°C

PTA6043-2015CPB103	1857719 Data Sheet + RoHS Date/Lot Code	POTENTIOMETER SLIDE, 10KOHM, 250mW, ±20% BOURNS You previously purchased this product. View in Order History	Each	1+ €2.07 10+ €1.57 25+ €1.52 50+ €1.46 100+ €1.41 500+ €1.19 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	250mW	± 20%	Linear	-	Through Hole	60mm	-	15mm	PTA Series	Carbon	PC Pin	75mm	9mm	6.5mm	-10°C	50°C

PTA2043-2010CIB254	2519654 Data Sheet + RoHS	POT, SLIDE, 250KOHM, 0.1W BOURNS You previously purchased this product. View in Order History	Each	1+ €1.54 10+ €1.38 25+ €1.30 50+ €1.22 100+ €1.14 500+ €1.08 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	250kohm	100mW	± 20%	Linear	-	Through Hole	20mm	-	10mm	PTA Series	Carbon	PC Pin	35mm	9mm	6.5mm	-10°C	50°C

PTA2043-2015CPB103	2519588 Data Sheet + RoHS Date/Lot Code	POT, SLIDE, 10KOHM, 0.1W BOURNS You previously purchased this product. View in Order History	Each	1+ €1.46 10+ €1.20 25+ €1.13 50+ €1.07 100+ €1.00 500+ €0.915 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Low Profile	10kohm	100mW	± 20%	Linear	-	Through Hole	20mm	-	15mm	PTA Series	Carbon	PC Pin	35mm	9mm	6.5mm	-10°C	50°C

PSP01-082A-103B2	2706334 Data Sheet + RoHS Date/Lot Code	Slide Potentiometer, Motorized, 10 kohm, ± 20%, 500 mW, Linear, Through Hole BOURNS You previously purchased this product. View in Order History	Each	1+ €47.02 5+ €44.41 10+ €41.79 25+ €33.43 50+ €31.35 168+ €29.51 840+ €28.92 1680+ €28.33 More Pricing...	Restricted Item Minimum order of 1 items Multiples of 1 only Please enter a valid quantity Add Min: 1 Mult: 1	Motorized	10kohm	500mW	± 20%	Linear	-	Through Hole	100mm	-	8.2mm	PSP	-	Snap-in	157mm	14mm	44.4mm	-10°C	70°C

3048L-2-503	2813601 Data Sheet + RoHS Date/Lot Code	SLIDE POTENTIOMETER, LINEAR, 50K, 20% BOURNS You previously purchased this product. View in Order History	Each	50+ €31.64	Restricted Item Minimum order of 50 items Multiples of 50 only Please enter a valid quantity Add Min: 50 Mult: 50	-	50kohm	120mW	± 20%	-	-	-	5.08mm	-	-	3048 Series	-	Wire Leaded	31.75mm	6.99mm	8.28mm	-55°C	125°C

PTE60-121C-103B2	2813674 Data Sheet + RoHS	SLIDE POTENTIOMETER, AUDIO/LINEAR, 10K BOURNS You previously purchased this product. View in Order History	Each	252+ €7.78	Restricted Item Minimum order of 252 items Multiples of 252 only Please enter a valid quantity Add Min: 252 Mult: 252	Low Profile	10kohm	200mW	± 20%	Linear	-	Through Hole	60mm	-	12mm	PTE Series	Carbon	PC Pin	87mm	16mm	10mm	-10°C	55°C

PTA3043-2010CIB103	2519655 Data Sheet + RoHS	POT, SLIDE, 10KOHM, 0.2W BOURNS You previously purchased this product. View in Order History	Each	1000+ €1.21	Restricted Item Minimum order of 1000 items Multiples of 1000 only Please enter a valid quantity Add Min: 1000 Mult: 1000	Low Profile	10kohm	200mW	± 20%	Linear	-	Through Hole	30mm	-	10mm	PTA Series	Carbon	PC Pin	45mm	9mm	6.5mm	-10°C	50°C
