EZ430-RF2500-SEH -

Raccolta di Energia, Strumento di Sviluppo per Raccolta di Energia

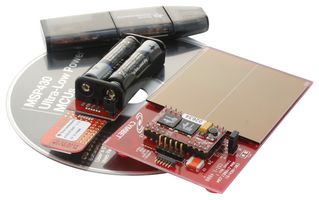

L'immagine ha puramente scopi illustrativi. Vedere la descrizione del prodotto.

Cod. produttore:
EZ430-RF2500-SEH
Codice Prodotto
1740342
Datasheet tecnico:
(EN)
Visualizza tutti i documenti tecnici

Informazioni sui prodotti

:
Texas Instruments
:
MSP430
:
eZ430-RF2500T Wireless Target Boards, USB Debugging Interface, SEH-01 Harvester Board, AAA battery
:
-
:
Energy Harvesting
:
Rilevamento - Temperatura
Trova prodotti simili Per trovare prodotti simili, scegli e modifica gli attributi indicati sopra.

Panoramica del prodotto

The EZ430-RF2500-SHE is a solar energy harvesting development kit for powered wireless sensor network, based on the ultra low power MSP430 microcontroller. Solar energy harvester module includes a high efficiency solar (2.25x2.25") panel optimized for operating indoors under low intensity fluorescent lights, which provides enough power to run a wireless sensor application with no additional batteries. Inputs are also available for external energy harvesters such as thermal, piezoelectric, or another solar panel. The eZ430-RF2500 is used to run the energy harvesting application. It is a complete USB based MSP430 wireless development tool and provides all the hardware and software necessary to use the MSP430F2274 microcontroller and CC2500 2.4GHz wireless transceiver. It includes a USB debugging interface that allows for real time, in system debugging and programming for the MSP430 and it is also the interface to transfer data to a PC from wireless system.
  • Efficient solar energy harvesting module for the eZ430-RF2500
  • Battery less operation
  • Works in low ambient light
  • 400 plus transmissions in dark
  • Adaptable to any RF network or sensor input
  • Inputs available for external harvesters (thermal, piezo, 2nd solar panel, etc.)
  • USB debugging and programming interface with application backchannel to PC
  • 18 available analog and communications input/output pins
  • Highly integrated, ultra low power MSP430 MCU with 16MHz performance
  • Two green and red LEDs for visual feedback, Interruptible push button for user feedback

Applicazioni

Energia Alternativa

Sommario

Two eZ430-RF2500T wireless target boards, One eZ430-RF USB debugging interface, One AAA battery pack with expansion board (batteries included), One SEH-01-DK Solar Energy Harvesting Board, One MSP430 Development Tool CD containing documentation and development software.
